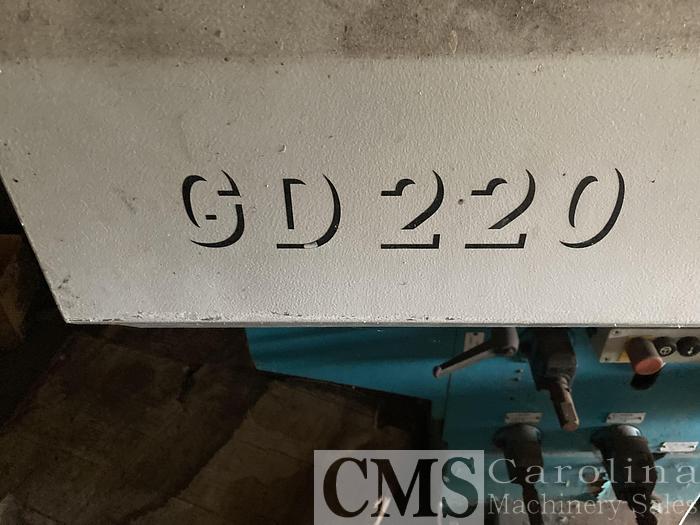

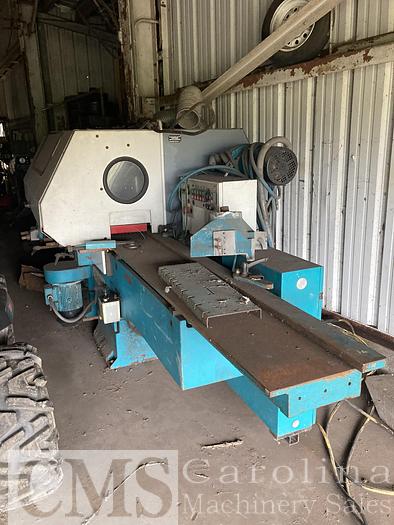

1997 Wadkin GD 220 5 Head Moulder

Manufacturer’s Specs

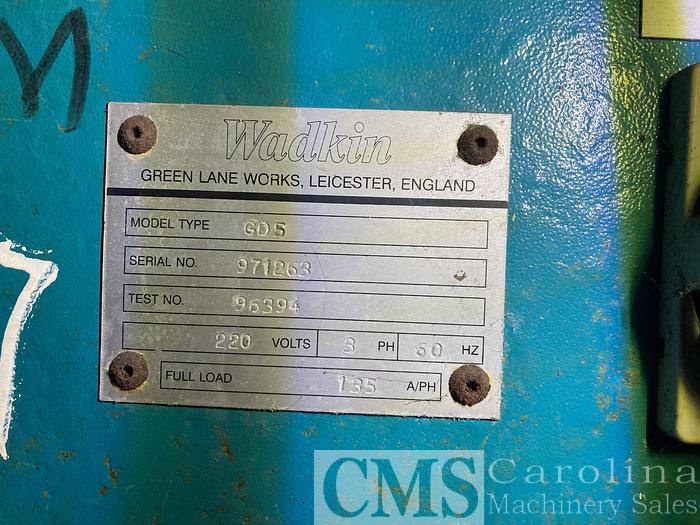

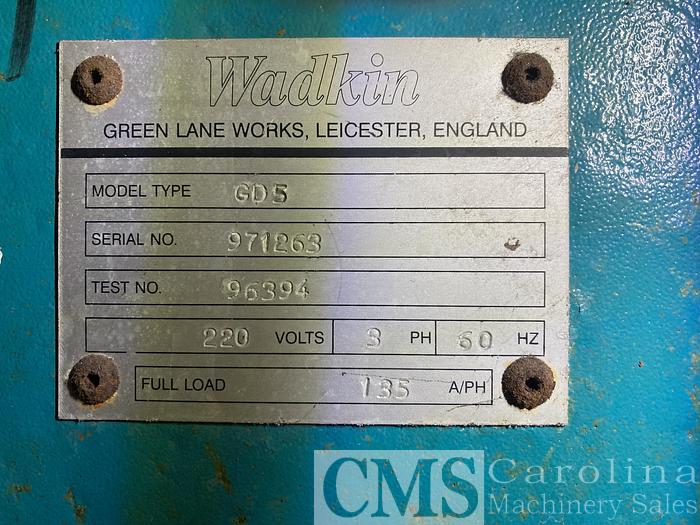

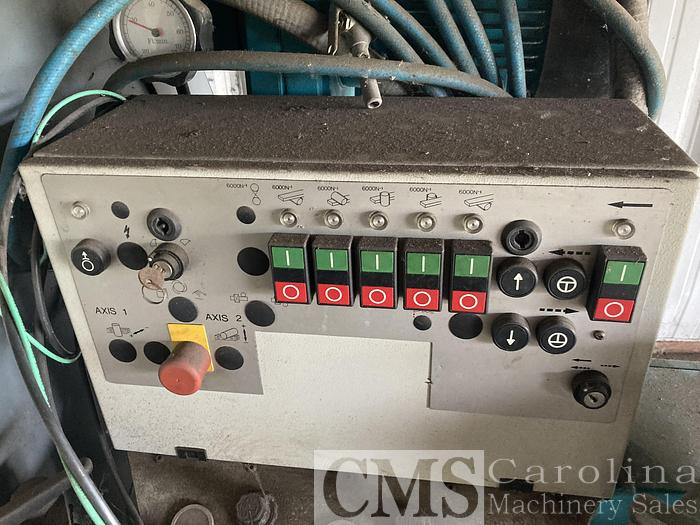

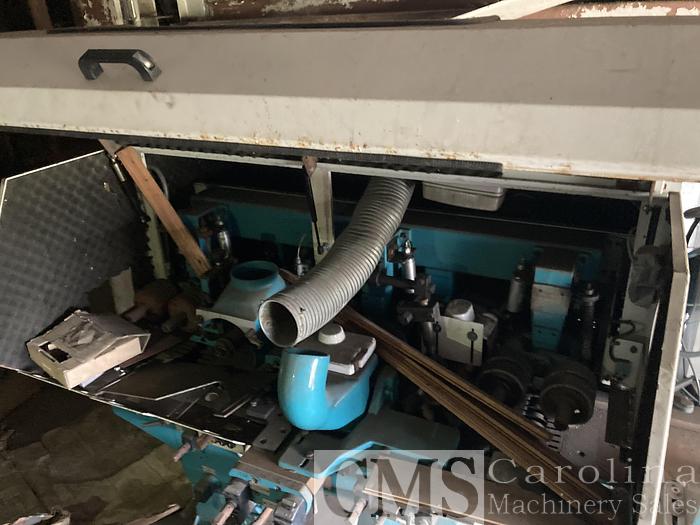

Model GD-220-5 220 volt three phase, 60 hz, 67 amps Max workpiece admitted 230 mm x 130 mm (9" x 5") Max workpiece finished size 220 mm x 120 mm (8.66" x 4.72") 10-1/2" wide x 77" long adjustable height infeed table 1" high adjustable infeed fence 40mm Spindle dia. - 1st head: bottom horizontal spindle 7-1/2 hp, 208-230/460 volt three phase drive motor - 2nd head: right hand vertical spindle 7-1/2 hp, 208-230/460 volt three phase drive motor - 3rd head: left hand vertical spindle 7-1/2 hp, 208-230/460volt three phase drive motor - 4th head: top horizontal spindle 15 hp, 208-230/460 volt three phase drive motor - 5th head: bottom horizontal spindle 10 hp, 208-230/460 volt three phase drive motor cardan feedworks Mechanical digital readouts on chip breaker and axial adjustments Sound and safety enclosure with lift up hood around all heads Interior cabin work light 3 hp, 208-230/460 volt three phase feedworks drive motor Variable speed feed with 20 to 75 ft/min range Push button motor controls
