2017 Biesse Stream A 6.0 Edgebander A1

Machine Equipped as follows:

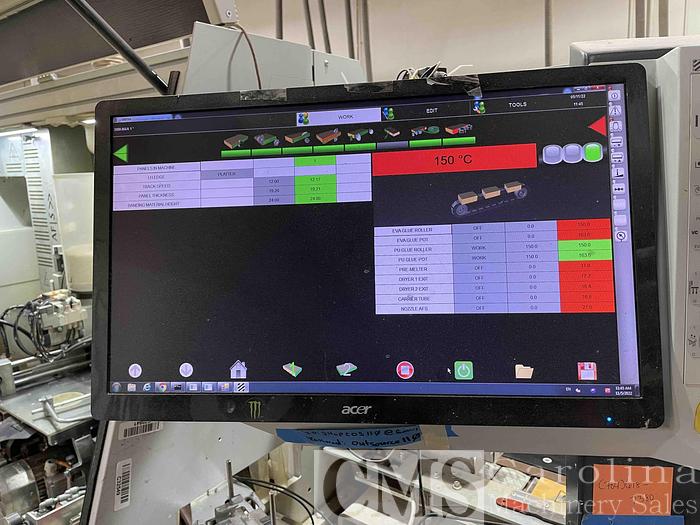

NC 410 PC Based Controller

Keyboard with Floppy Drive

Automatic Strip Feed Magazine

Belt Driven Top Pressure Beam

Multi-Coiled Infeed Magazine

RT63 Pre-Milling Unit

SP20 Glue System w/ Pre-Melt Unit

Hot Air Gluing system

Automatic Infeed Pressure System

T45 Front & Rear End Trimming Units w/Tilt

RS10 Top & Bottom Rough Trimming Units

RF30 Top & Bottom Fine Trimming Units

AR10 4 Motor Corner Rounding Trimming Units

RB30 Top & Bottom Profile Scraping Units

RC10 Top & Bottom Glue Scraping Units

SZ30 Top & Bottom Oscillating Buffing Units

PH10 Top & Bottom Edge Heaters

Specifications:

Min. Panel Thickness:....................10mm


Max. Panel Thickness:....................60mm


Height of Edge-Band Material:…..15-65mm


Min. Banding Thickness:.................0.3mm


Max. Banding Thickness:........ ...... 20mm


Min. Panel Length:...........................150mm


Min. Panel Width:............................ 100mm


Feed Speeds:.................................10-24m./min


Electrics: ......................................... 460-480V 3 Phase
