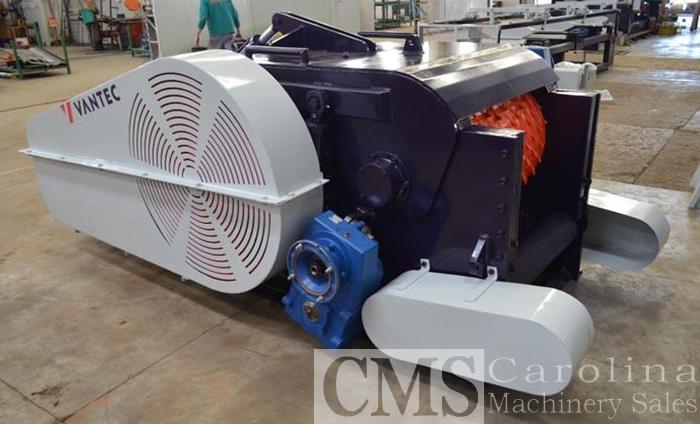

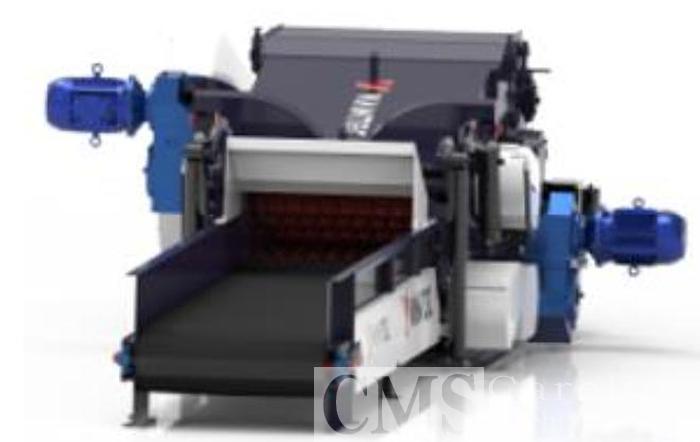

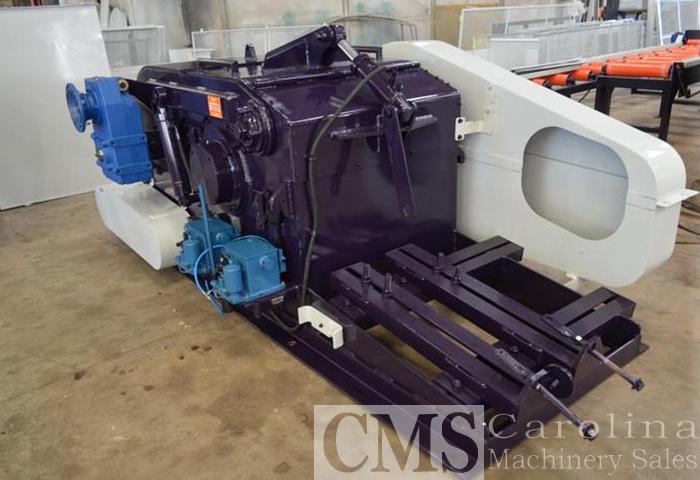

Vantec PT750/R8 Horizontal Drum Chipper

This Wood Drum chipper PT750 is used in production of wood chips from logs and veneer waste. It has a toothed roller system that allows efficient material infeed, rubberized conveyor belt and Hydropneumatic unit to lift the rotor cover for maintenance. It comes with 01 chipper Knife set and 01 nose bar set. It does not come with the output conveyor.

Width of inlet: 750 mm;

• Height: 300 mm;

• Rotor diameter: 800 mm;

• Toothed roller: 03 upper and 03

lower;

• Grooved rollers: 01;

• Rollers gear motor: GD (helical gears); • Upper Rollers motor size: 7,5 hp (2x); • Feed speed: 35 m/min;

• Number of rotor knives: 02;

• Wood chip size: 25 - 40 mm;

• Chipper screen: size: 70x 70mm;

• Main motor 200 hp 4P: Included;

• Drive panel: Included;

• Estimated production: 65 m3 / h (it may vary according to the type of material and time used with blade sharpening);

• Lead Time: 240 Days

• Infeed conveyor length: 3 500 mm

(included);

• Width: 2 500 mm;

• Height: 1.250 mm;

• Overall length: 7 300 mm;

• Approximate weight: 8 750 kg.
