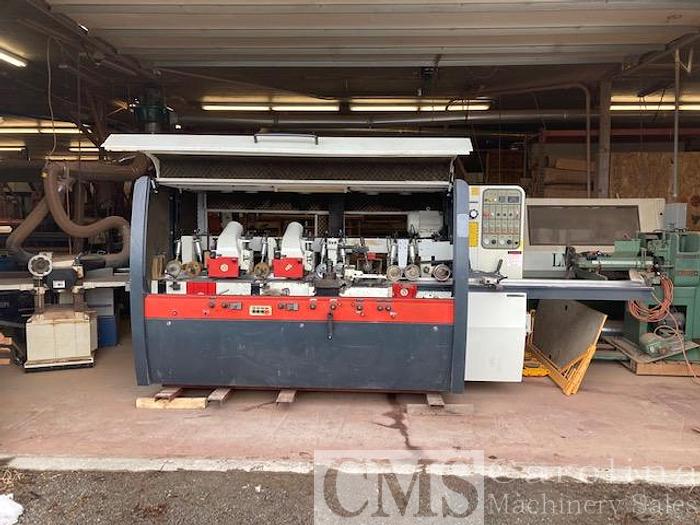

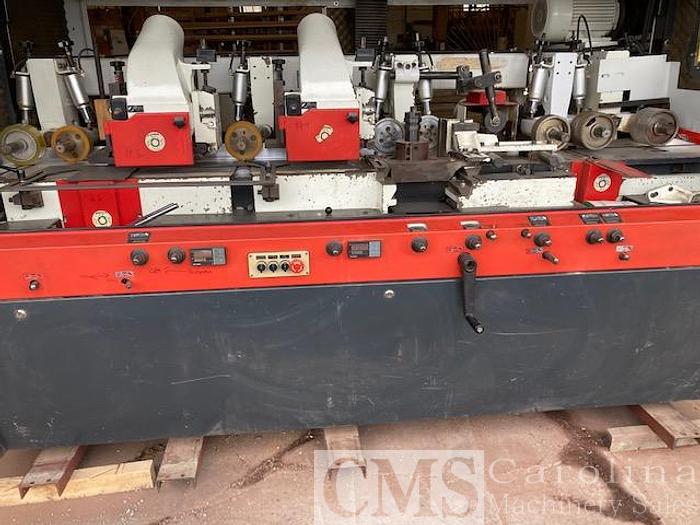

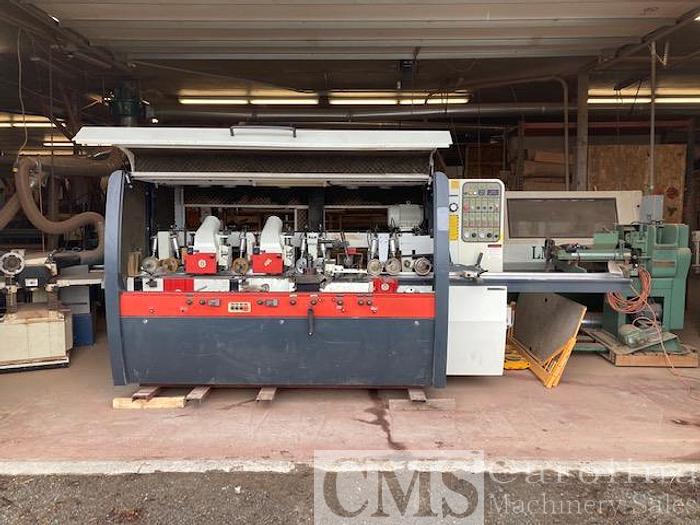

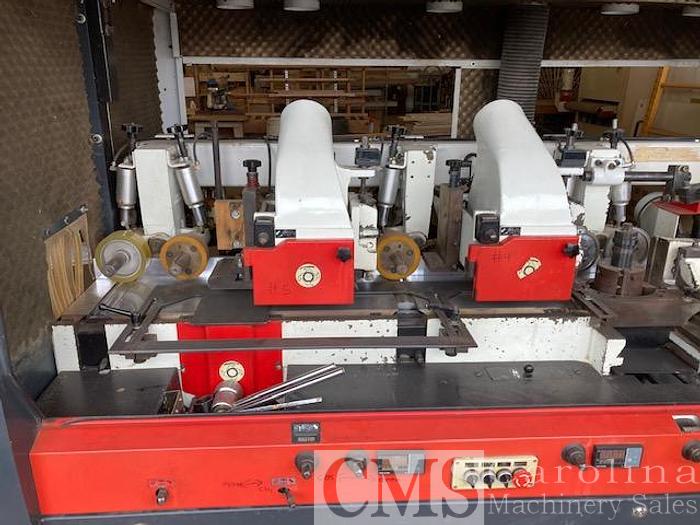

2006 Lobo 236-H 6 Head Moulder

Year: 2006

Working Width: 25mm to 230mm (1" to 9")

Working Thickness: 8mm to 120mm (0.31" to 4.72")

Bottom Spindles (x2): 40mm diameter, 0-20mm transverse movement, 6000 RPM, 5.5kW (7.5 HP)

Top Spindles (x2): 40mm diameter, 0-20mm transverse movement, 6000 RPM, 7.5kW (10 HP)

Side Spindles (x2): 40mm diameter, 0-20mm transverse movement, 6000 RPM, 5.5kW (7.5 HP)

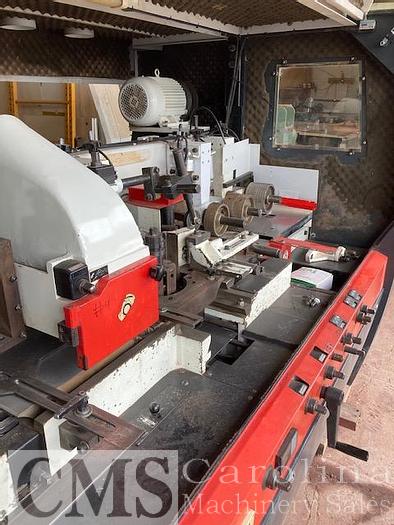

Configuration: Bottom, Side, Side, Top, Top, Bottom

Feed Motor: 4kW (5.5 HP)

Elevation Motor: 0.75kW (1 HP)
