1989 Heesemann LSM 8 CL

Location

Southeast USA

orCall 704-288-1904

Specifications

ManufacturerHeesemann
ModelLSM 8 CL
Year1989
Stock Number009479

Description

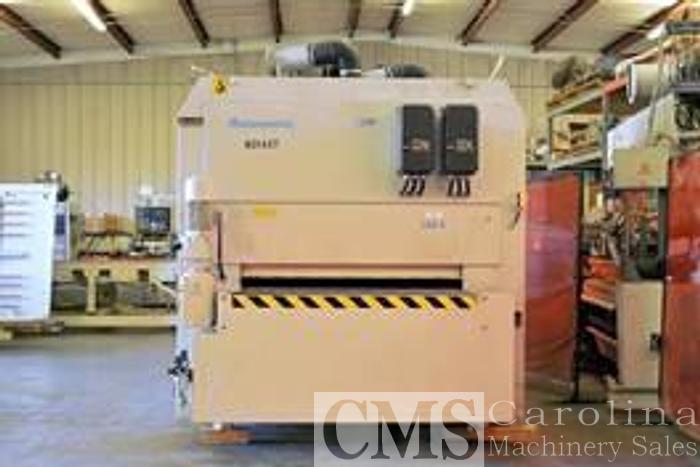

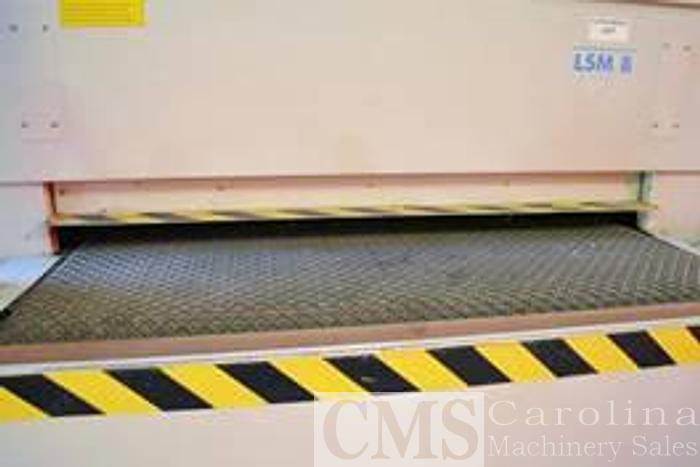

HEESEMANN LSM-8 C/L Wide Belt Sander, (2) Heads


53" (1,300 mm) Width cap., (1) Segmented cross-belt & (1) longitudinal combination head with segmented platen.


Head Configuration:

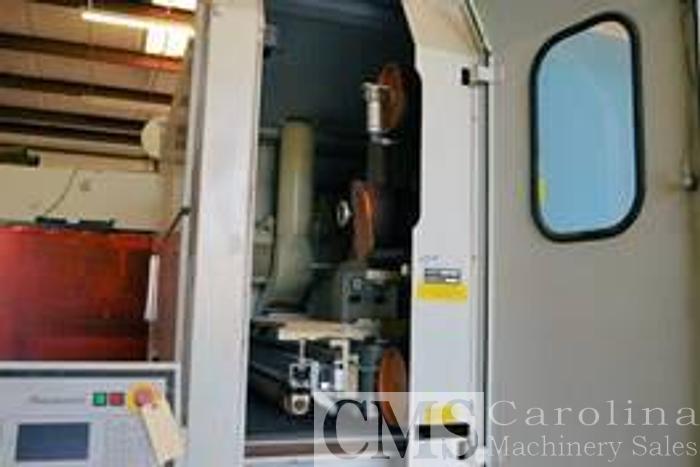

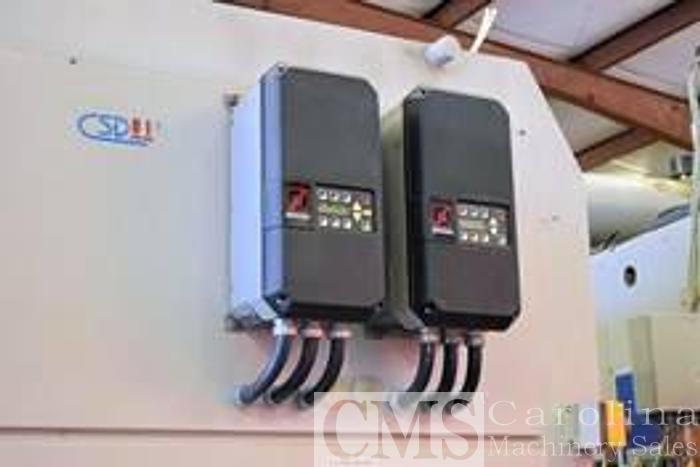

·  1st Head:  Segmented cross-belt, 5/8" wide segments (86 total) with "CSD" control, abrasive belt size 5.9" x 244", (5,400 mm X 150 mm ) inside chevron belt 5.9" x 191", sanding belt speed 5-12 m/s with 17 HP motor. (Inverter controlled)

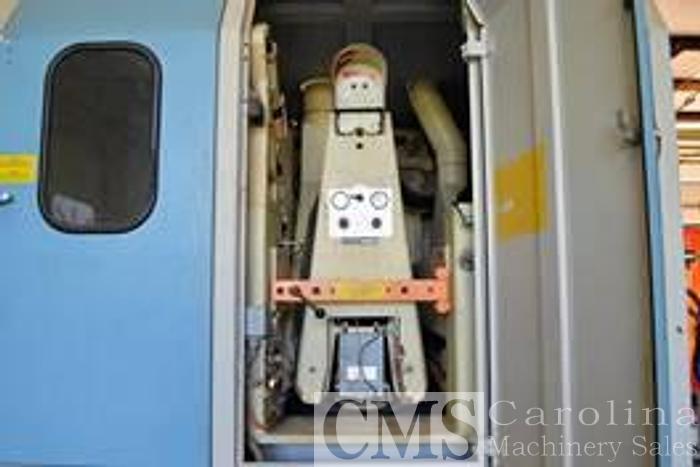

·  2nd Head:  Combination head, with segmented polishing platen, 5/8" wide segments with CSD control, 17 HP motor, 106" x 53"  ( 2,620 mm X 1,350 mm ) abrasive belt size. (Inverter controlled)





Equipped with & Features:

·  HESSEMANN's patented "CSD" magnetic pressure adjustment system, sensors spaced every 5/8" (16 mm) sense part configuration; (2) mm part thickness variation can be sanded without sand through’s, pressure for each segment can be pre-programmed to provide less pressure on the outer edges or more in the center if required.

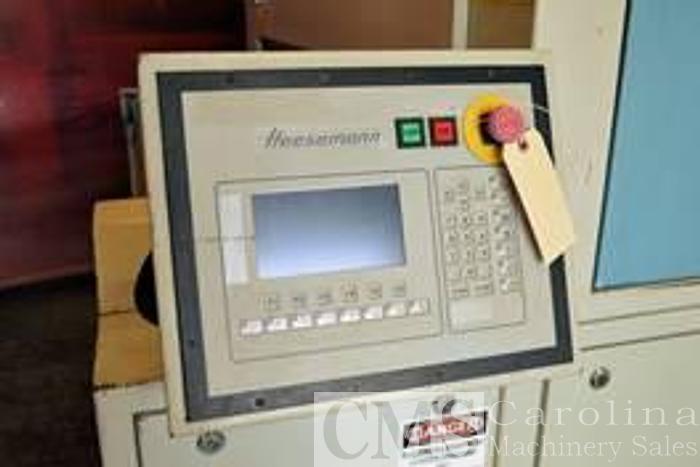

·   The "CSD" computer control will hold approx. (20) programs or part configurations.

·  Additional features: Outfeed rotary panel cleaning brush with single end adjustment, 2 HP motor, air blast abrasive belt cleaners on all heads.

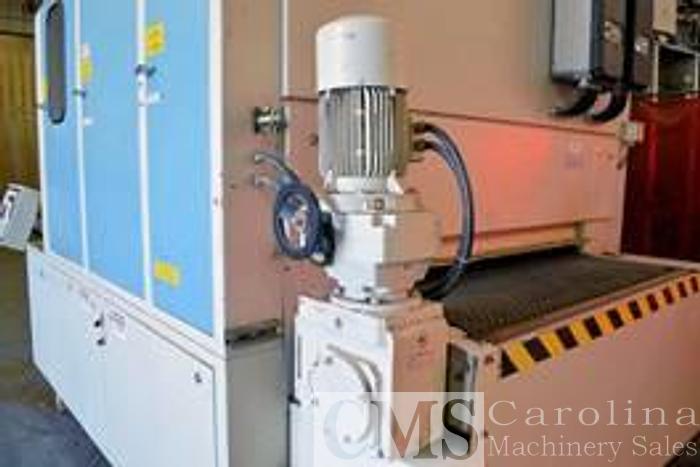

·  Variable feed speed from 13 to 82 FPM via Stober drive, 6.5 HP feed drive, motorized thickness opening 1/4" to 3-5/32" maximum.

· Belt condition at 80% good.
